Raspberry SUPER Pi case

A more detailed look into the in-house Raspberry Pi case project.

I wanted a user to be able to simply plug and play with the case without requiring any desoldering/soldering of components.

I wanted a user to be able to simply plug and play with the case without requiring any desoldering/soldering of components.

Parts were designed and modeled in CAD and FDM 3D printed. The parts required sanding due to the layer thickness of the 3D print.

Parts were designed and modeled in CAD and FDM 3D printed. The parts required sanding due to the layer thickness of the 3D print.

Once sanded, the parts were primed and spray painted. A slider mechanism is used to cover the cartridge bay if it is not being used.

Once sanded, the parts were primed and spray painted. A slider mechanism is used to cover the cartridge bay if it is not being used.

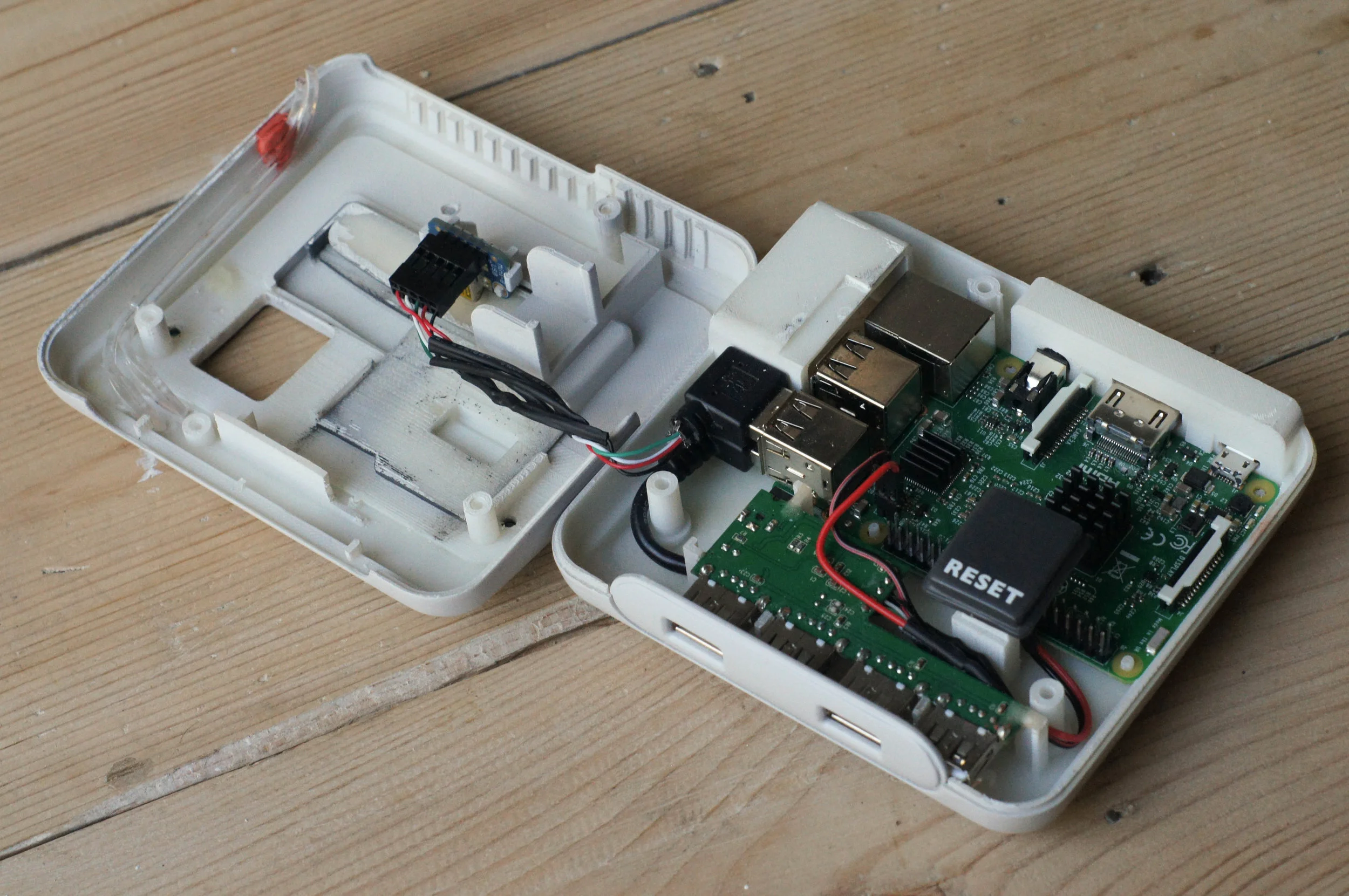

A single USB port is routed to a hub at the front, with a second USB port converted to a mini USB and routed to the top of the case. Ethernet and the remaining 2 USBs are still accessible from the side. The HDMI and power are at the rear of the case. Solder-less header pins are used to provide connection for the the reset switch. Light pipes guide the LEDs from the board to the front-top of the case. Each cartridge has a mini to standard USB connection to plug in a small profile USB stick which hold the OS.

A single USB port is routed to a hub at the front, with a second USB port converted to a mini USB and routed to the top of the case. Ethernet and the remaining 2 USBs are still accessible from the side. The HDMI and power are at the rear of the case. Solder-less header pins are used to provide connection for the the reset switch. Light pipes guide the LEDs from the board to the front-top of the case. Each cartridge has a mini to standard USB connection to plug in a small profile USB stick which hold the OS.

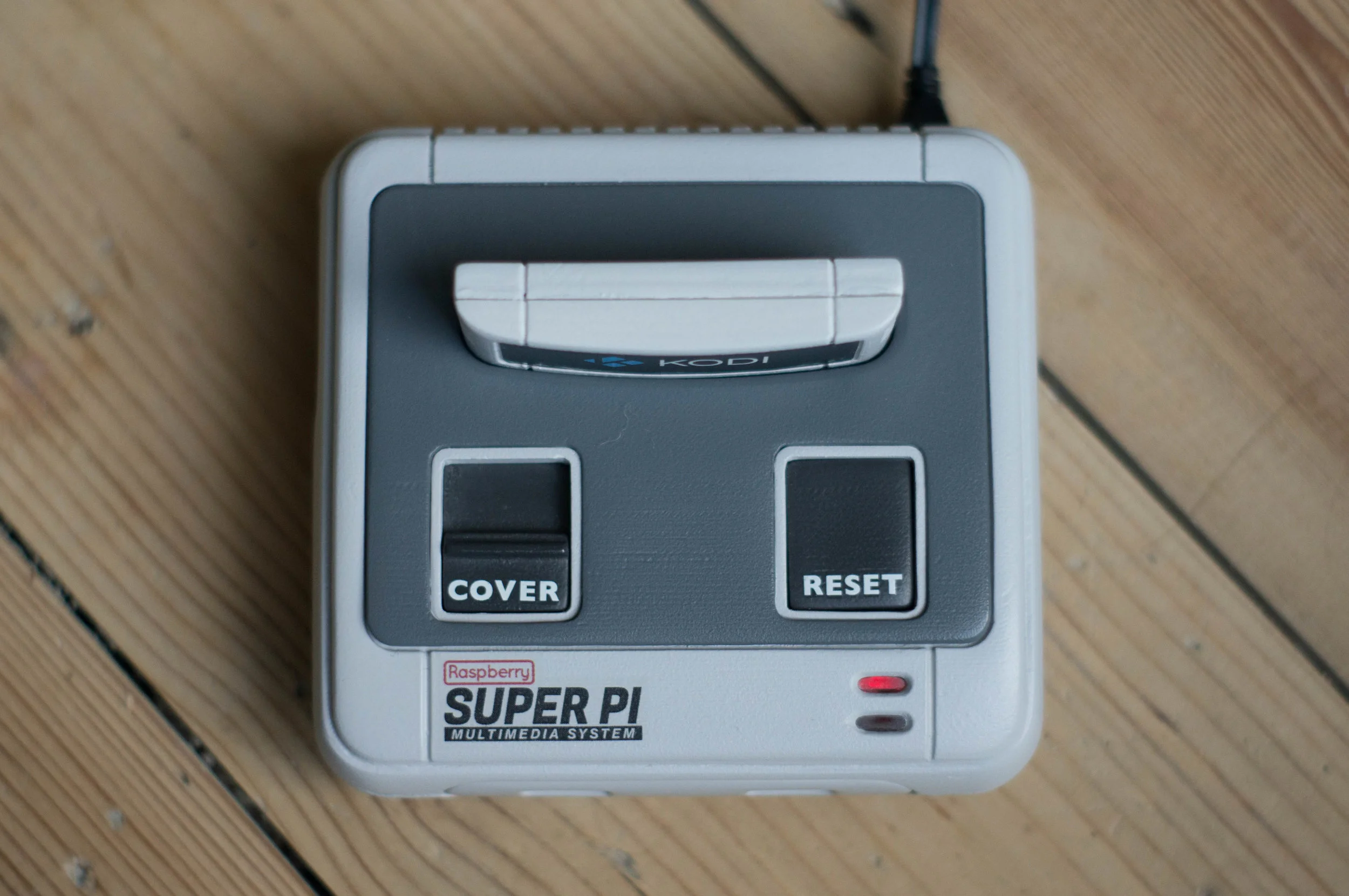

Power indicated, through the use of light pipes from the board LEDs.

Power indicated, through the use of light pipes from the board LEDs.

Berryboot runs from a micro SD to allow the Raspberry Pi user to change OSs by switching cartridges

Berryboot runs from a micro SD to allow the Raspberry Pi user to change OSs by switching cartridges

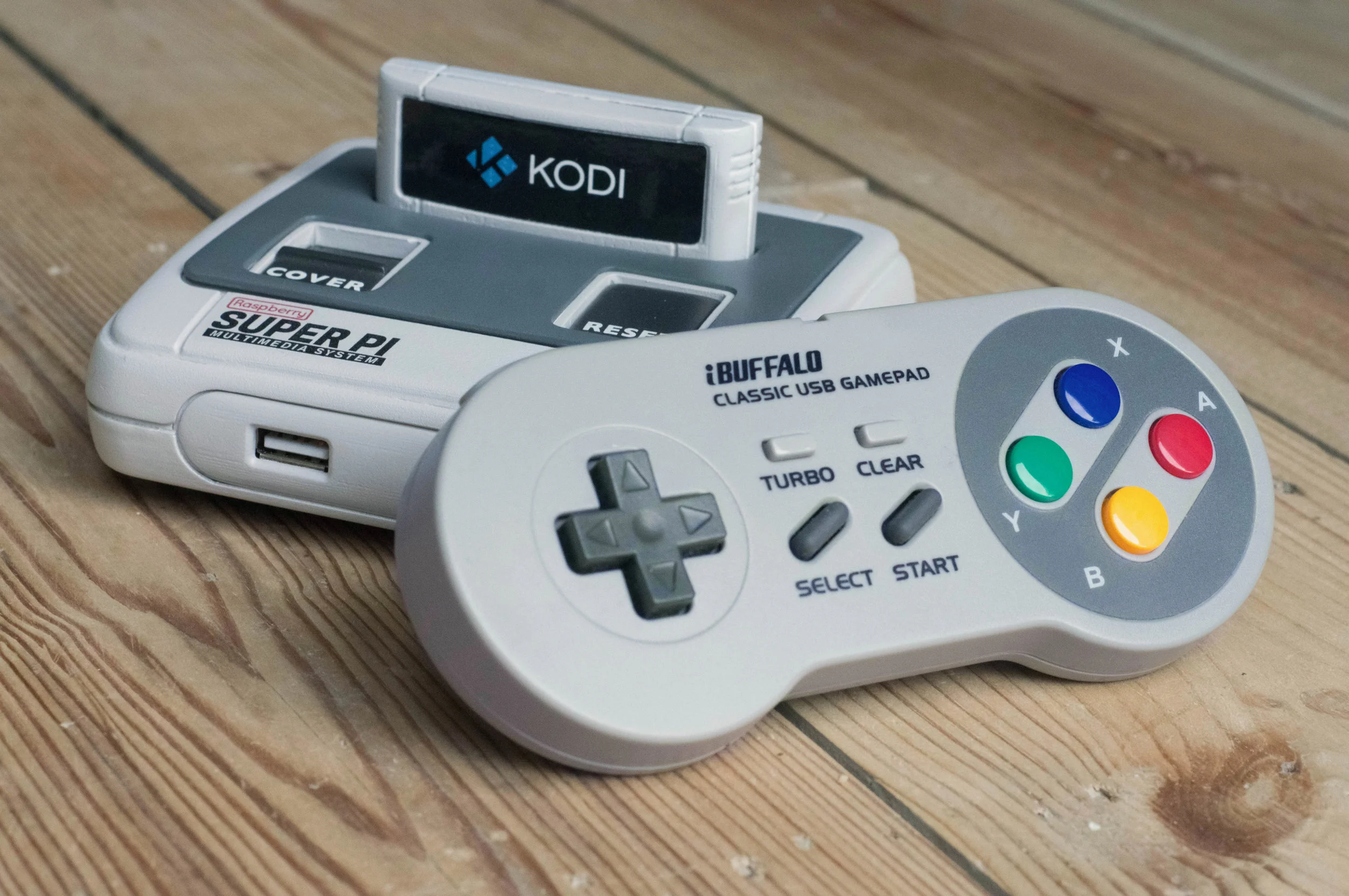

Size comparison next to an IBuffalo classic controller

Size comparison next to an IBuffalo classic controller
